Protein/low molecular crystal mount tool Crystal Catcher™ Tip

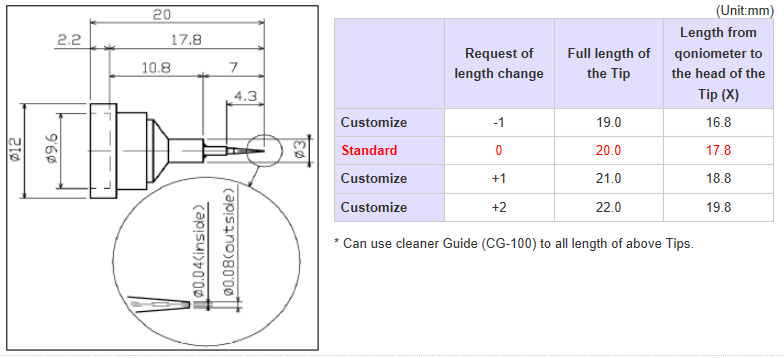

Crystal Catcher™ Stainless Tip (CT-100, CT-200) diagram

Size examples:

	A	B	C
Standard Product	17.8	7.0	20.0
Customize: Standard + 1mm	18.8	8.0	21.0
Customize: Standard - 1mm	16.8	6.0	19.0

(Unit:mm)

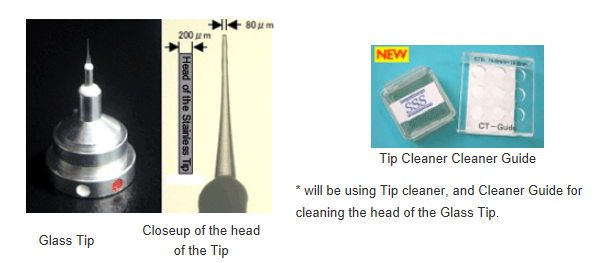

Introduction of Crystal Catcher™ Glass Tip (CT-300, CT-400)

＜Benefit of Glass Tip＞

• Because it has fine head (O.D.80um), it accepts minute crystals
• Can see crystal in the solvent well, better manipulation performance
• Less scattering of diffraction although X-ray touches the end of the Tip

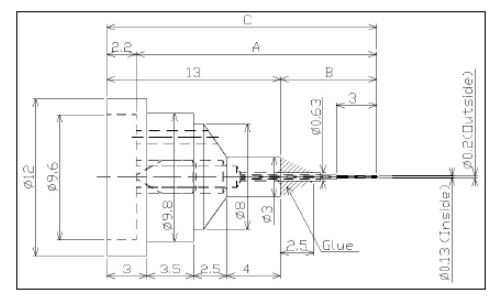

Crystal CatcherTM Glass Tip (CT-300, CT-400) diagram

---

Exclusive distributor (within Japan): SOSHO, Inc.
