3D Ball Mill : makes it possible to crush, mix and dispersion

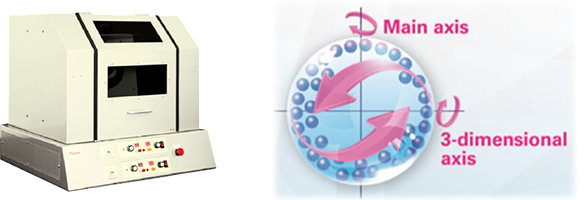

3D Ball Mill enables solid substances in centimeter or millimeter scale to nanometer scale by crushing, mixing, or dispersing in the sphere-shaped box inside the equipment. The internal rotation box creates zero-gravity environment in the equipment when it rotates in 3D movement.
Typical usage of the 3D Ball Mill
- Mix various materials
- Mix ink
- Crush polymer, ceramics, etc.
- Mix pharmaceutical drugs / cosmetics
- Mix dispersion with solution
- Improve water function (nano bubbling)
Expected usage of the 3D Ball Mill
- Mix carbon nanotube with polymer
- Mix ceramics for 3D printer with organic substance
- Development of new raw materials ; mix or dispersion!
Typical industry the 3D Ball Mill is used at
- R&D institutions
- Material & Chemical makers
- Printer makers
- Pharmaceutical drug makers
- Cosmetic makers
- Food makers

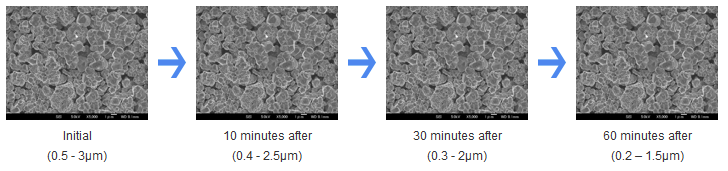

Result of CFCO500 CuO (Cupper Oxide) material crush
SEM image：Initial size of the grain is approximately 0.5 – 3µm
3D Ball Mill Specification
| Item number | 3D-80 | 3D-210-D2 | 3DB-80 | 3D-180 |
|---|---|---|---|---|
| Feature | Integrated small type | Slimer mid-size type | Separated small type | Hard mid-size type |
| Principal axis | 3D axis Distinctive controlable desk top type | 3D axis Distinctive controlable desk top type Globe box insert type | 3D axis Distinctive controlable desk top type 2 & 3D moveable type | |
| Picture |
|
|
|
|
| Dimension | 370(W)×260(D)×360(H)mm | 495(W)×420(D)×550(H)mm | 500(W)×260(D)×255(H)mm | 680(W)×600(D)×660(H)mm |
| Weight | 21Kg | 48Kg | 17Kg | 68Kg |
| Principal axis (Vertical) rev up |
0～600rpm | 0～300rpm | 0～600rpm | 0～300rpm |
| 3D axis (Crosswise) rev up |
0～600rpm | 0～300rpm | 0～600rpm | 0～300rpm |
| Actual 3D frame rev up |
0～1200rpm | 0～600rpm | 0～1200rpm | 0～600rpm |
| Power supply | AC100V 120W DC Brushless motor (2pcs) |
AC100V 300W DC Brushless motor (2pcs) |
AC100V 120W DC Brushless motor (2pcs) |
AC100V 300W DC Brushless motor (2pcs) |
| Maximum power consumption |
240W | 600W | 240W | 600W |
| Inner sphere case materials |
|
|
|
|
