Magnetic Data Erasing System ERAZER
The magnetic data erasing system which instantly erases various data in standard storage media such as 2.5/3.5 inch HDD, CMT, LTO, DAT, DLT, VHS.
Feature of ERAZER
Strong magnetic field changes magnetization direction to erase media data.

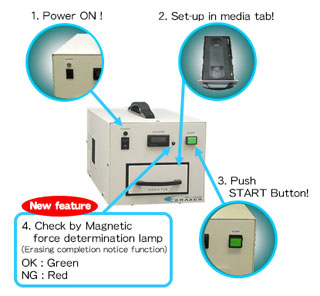

- Easy operation & instant data erasing (erasing time 0.1 sec)
- Not limited to OS as it applies physical erasing
- Broken media is also erasable
- Designed to be harmless to human body / peripherals in magnetic leakage
- Compact & light design enables ease of carrying / install
- Silent system enables to be used indoor
- On-board diagnostics function with magnetic force determination lamp
- Interlocking function by tab open/close sensor
- Compatible to both horizontal and perpendicular magnetic storage HDD

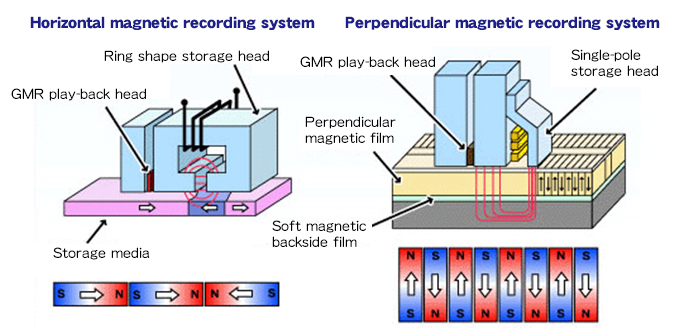

What is "Perpendicular magnetic recording system"?
Horizontal magnetic recording system:
Only thin(nm) storage media (magnetic particle) is magnetized. Less data volume to be erased.
Perpendicular magnetic storage system:
More vertical thickness is required (approx. 10 to 100 times) for storage media. More data volume to be erased.
Specification
ERAZER Specification
| ERAZER type | S Type | P Type | M Type | L Type |
|---|---|---|---|---|
| Feature | Standard model | Power model for magnetic field generation NEW! |
Proffesional model available for thicker HDD |
Stationary model for maximum out-put |
| Item number | ER-TypeS (ES02-100) | ER-TypeP (ES03-100) | ER-TypeM (EM02-100) | ER-TypeL (ES02-100) |
| Picture |
|
|
|
|
| Eraseable media |
|
|
|
|
| Generated magnetic field |
750kA/m | 1120kA/m | 820kA/m | 750kA/m |
| Power supply rated value |
AC 100V±10% 50/60Hz | |||
| Power consumption rated value |
50W | 100W | 100W | 230W |
| Weight | 10Kg | 14Kg | 15Kg | 105Kg |
| Mountable media size |
W109xH30xD194(mm) | W109x H30xD194(mm) | W109xH40xD194(mm) | W295xH45xD405(mm) |
| Dimension | W220×H250×D400(mm) | W220×H250×D480(mm) | W220×H250×D480(mm) | W515×H615×D565(mm) |
| Recharge time | approx. 15 sec | approx. 15 sec | approx. 15 sec | approx. 40 sec |
| Operating environment | Temperature 5～40℃ / Humidity 20～80% (No condensation) | |||
| Accessories | Instruction manual / Power cable | |||
| Rentalable |
|
X |
|
X |

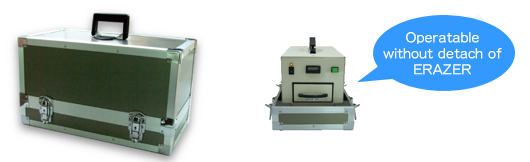

Carrier case for ER-TypeS/P/M specification
| Item number | ER-TypeS carrier case (CS02-100) | ER-TypeP/M carrier case (CM02-100) |
|---|---|---|
| Picture |
|
|
| Weight | approx. 5Kg | approx. 5.4Kg |
| Dimension | W280×H310×D510(mm) | W280×H310×D585(mm) |
