3D cell culture device with microfluidic technology CEP3D II
CEP3D II, which is connecting two different sizes of well by microchannel, provide concentration gradient in the channel.
It will reduce the use of medium, additives reagent and cells and be very useful for high-throughput drug screening.

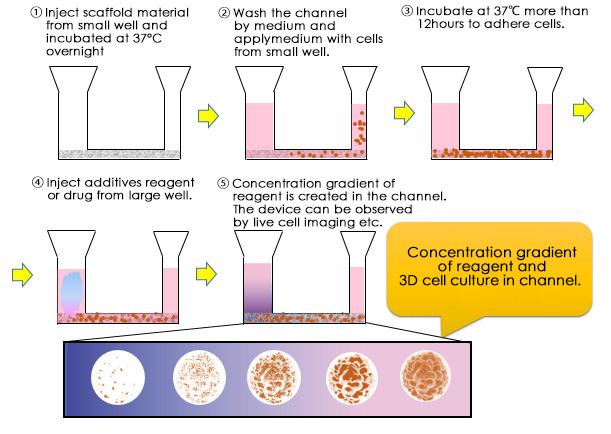

CEP3S II conceptual workflow for apply scaffold, cell and reagent
Scaffold material, collagen and hydrogel in channel allow 3D cell culture for human ES/iPS cell.

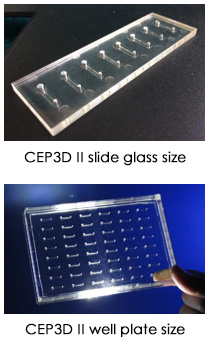

Specification of CEP3D II
| Specification | CEP3D-Ⅱ mini Slide glass 16 |
CEP3D-Ⅱ Well Plate 96 |
|---|---|---|
| Diameter of well | 1φ-2φ | |
| Length between small and large well | 9mm | |
| Size of channel | W0.8mm D0.2mm | |
| Total volume of well and channel | About 10μl | |
| Material of channel and well | COP | |
| Other | Individual Packing, Electron beam sterilized, Endotoxin-free, Made in Japan | |
