Live Cell Imaging Chamber and Incubation Observation System Chamlide™

What's "Chamlide"?

Chamlide offers culture chamber, incubator system for high magnification microscopy, and peripheral equipment necessary for the Live Cell Imaging (Time lapse Imaging, etc).

Incubator
Incubator
Perfusion System
Perfusion System

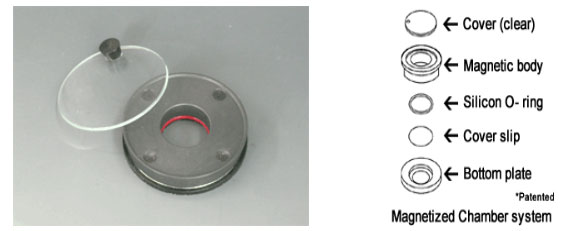

What's "Culture Chamber"? -- uses a magnet for quick setting

Prevents the breaking of the cover slip and the leaking of medium

Prevents the breaking of the cover slip and the leaking of medium

The culture chamber is autoclavable and, as such, can be reused many times.
Also, it is extremely economical when compared to expensive and non-reusable commercial dishes and chambers.

The Various Types of Culture Chambers we offer

Non-perfusion culture chambers

35mm dish-type chamber

Chamlide
35mm dish-type chamber
for 18Φ cover slips
for 25Φ cover slips
*We recommend it to observe weak fluorescent samples!!

Chamlide 35mm dish-type chamber (Injection Type and Perfusion Type)

Chamlide
35mm dish-type chamber
(Injection Type and Perfusion Type) for 18Φ cover slips
for 25Φ cover slips

35mm dish-type Multi-well Chamber (2well type, 4 well type)

Chamlide
35mm dish-type Multi-well Chamber
(2well type, 4 well type)
for 25Φ cover slips

35mm dish-type 4 well Chamber

Chamlide
35mm dish-type 4 well Chamber
for 12Φ cover slips

Well-slide

Well-slide
3, 6, 12 wells
Slide glass chamber

Chamlide PT well plate type chamber

Chamlide PT
well plate type chamber
6, 24, 96 well plate type
for special 113×75mm cover slips

Perfusion culture chambers

Chamlide AC Standard Perfusion Chamber

Chamlide AC
Standard Perfusion Chamber
for 18Φ cover slips
for 25Φ cover slips

Chamlide EC Electric Stimulation Perfusion Chamber

Chamlide EC
Electric Stimulation Perfusion
Chamber
for 18Φ cover slips
for 25Φ cover slips

Chamlide CF Electric Stimulation Perfusion Chamber

Chamlide CF
Electric Stimulation Perfusion
Chamber
for 18Φ cover slips
for 25Φ cover slips

Many other different types of chambers, corresponding to one's research goals are also available

System for Live Cell Imaging

It is perfect for customers, who want to keep the cultivating environment, while at the same time they can perform time lapse imaging and live cell imaging.

Stage top type Incubator for microscopy

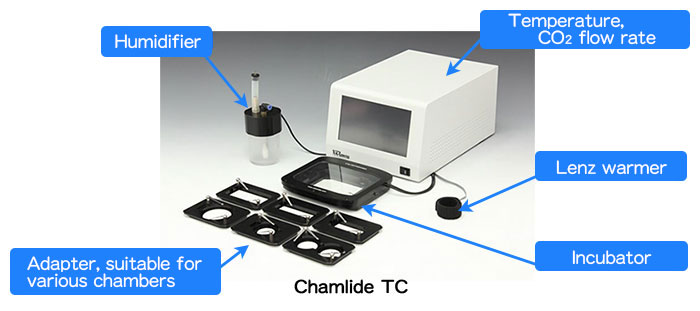

Chamlide TC :Incubator system for various types of chambers

Chamlide TC :Incubator system for various types of chambers
  • Corresponds with the non-perfusion Chamlide Chamber, commercial chamber slides, cover glass chambers, and 35 mm culture dishes.
  • Uses a flowmeter to sustain a mixed gas level (5%CO2/ 95%Air).
    Economizes C02 gas usage (to below 40 ml/min).
  • It sends fully humidified gas and reduces the vaporescence in culture media
  • Medium replacement and injection during the culturing process is simplified.
  • Applies built-in heater glass (patent pending) to the incubator cover to control temperature and prevent the formation of fog. Also employs low reflecting glass, allowing for a perfect transmission image to be obtained.

We can offer other systems too, regarding your needs.

Chamlide IC 35mm dish type Incubator System

Chamlide IC 35mm dish type Incubator System

Chamlide WP market well plate Incubator System

Chamlide WP market well plate Incubator System

6, 12, 24, 96 well plate types incubators are available.

Chamlide WP for 6 well plate

Chamlide WP for 6 well plate

The 6 well plate type Chamlide WP can be used with commercial well plates as well as six commercial 35mm culture dishes or six Chamlide magnetic chambers with their respective adaptors.

96 well plate type Chamlide WP incubator for high resolution imaging

96 well plate type Chamlide WP incubator for high resolution imaging

"There are two types of WP incubators for 96 well plate. One is for L.W.D. objectives and the other is for S.W.D. objectives."

3D Culture System

Collaboration system with 3D Culture Well plate allowing spheroids culture.
Incubators for ASI Piezo Z stage, LUDL, and PI Piezo stages are also available.

Incubator stage adaptors

Stage adaptors for Chamlide TC and Chamlide WP
For manual stage of Olympus, Nikon

For manual stage of Olympus, Nikon

For object guide of Leica, Zeiss (instead of mounting frame M)

For object guide of Leica, Zeiss
(instead of mounting frame M)

For Nikon Ti motorized stage

For Nikon Ti motorized stage

Stage adaptors for Chamlide IC
For manual stage of Olympus, Nikon

For manual stage of Olympus, Nikon

For mechanical stage or mortorized stage ( instead of mounting frame K )

For mechanical stage or mortorized stage
( instead of mounting frame K )

For object guide of Leica, Zeiss (instead of mounting frame M)

For object guide of Leica, Zeiss
(instead of mounting frame M)

Gas Mixer

FC-5 Automatic CO2 / Air mixer

FC-5 Automatic CO2 / Air mixer

  • Automatic CO2 gas mixing and supply system
  • Uses a PID control system for precise control of the CO2 concentration
  • Produces CO2 /Air mixed gas from 100% CO2 gas cylinder and ambient air
FC-7 Automatic O2 / CO2/ N2 mixer (For live cell imaging in hypoxia condition)

FC-7 Automatic O2 / CO2/ N2 mixer (For live cell imaging in hypoxia condition)

  • Automatic O2 / CO2/ N2 Gas mixing and supply system
  • Uses a PID control system for precise control of the O2 and CO2 concentrations
  • Produces mixed gas from 100% CO2, 100% O2 and 100% N2 gas cylinders
  • Produces very low concentrations of O2 mixed gas (min. 0.2% - 20%)

Configuration diagram for live cell imaging

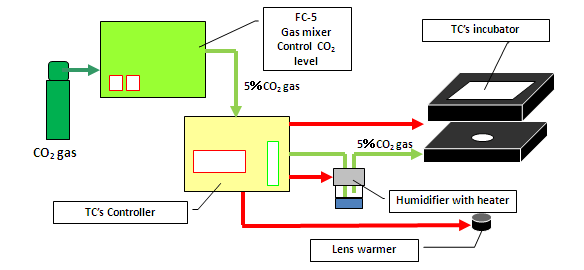

Example 1.　5％CO2 Live cell imaging (Chamlide TC & FC-5)

Example 1.　5％CO2 Live cell imaging (Chamlide TC & FC-5）

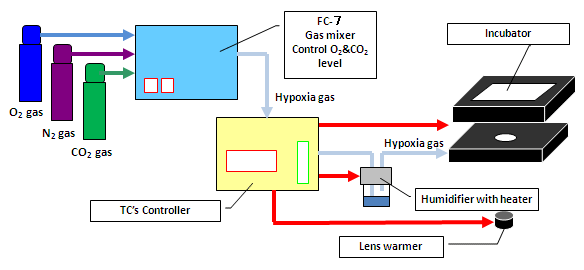

Example 2.　Hypoxia live cell imaging（Chamlide TC & FC-7)

Example 2.　Hypoxia live cell imaging（Chamlide TC & FC-7）

Perfusion Type

This provides for a constantly updated culture medium which is heated and incubated with a heating plate and inline heater. Please select a perfusion cultivation chamber that best meets the needs of your research content.

Heating Plate

Heating Plate

Fluid Inline Heater

Fluid Inline Heater

Examples of Usage

Examples of Usage

Temperature control software is attached to the Culture Observation System

Also supported by Imaging analysis software MetaMorph (Molecular Devices)
You can control temperature and CO2 concentration on the software.
It's also possible to display temperature conditions on the image.

Systems could fit on many microscopes. Feel free to contact us.

Application

  • GFP / RFP expression
  • ROS
  • FRAP
  • FRET
  • Time Lapse Imaging
  • All other types of live cell imaging
An example of how the Chamlide EC Electrically Stimulated Perfusion

An example of how the Chamlide EC Electrically Stimulated Perfusion
Chamber heating plate and fluid inline heater are used

Time lapse imaging of hippocampal neuron cells
EGFP-tagged target protein is moving into dendritic spines by neuronal stimulation. Dr. Sunghoe Chang. Department of Life Science, GIST

An example of how the Chamlide FC Closed

An example of how the Chamlide FC Closed
Perfusion Chamber heating plate and fluid inline heater are used

Membrane tubular structures are forming by overexpression of EGFP-tagged target protein into the cells. Dr. Sunghoe Chang. Department of Life Science, GIST

Example of Chamlide TC, 35mm dish type Magnetic Chamber 15hours of time-lapse imaging of a liver cancer cell

(YouTube 1:06)

*D culture sheet(SCIVAX Corporation), Nikon TE 2000 microscope is used

We take orders for special chambers and systems as well. Feel free to contact us.
