Nanoimprint (NIL) technocal consulting, Mold replication/cleaning

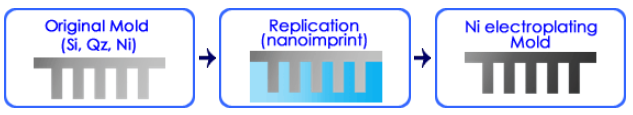

Mold Replication Service

To minimize your risk to spoil your valuable mold, we offer mold replication service. Applying our expertise in nanoimprint techniques, we are able to make replica mold from your original mold. Applicable for fine pattern to large complicated structured mold.

We are able to provide anti-sticking treatment by applying our original technology which enables uniform coating on ultrafine pattern. Fine MoZt

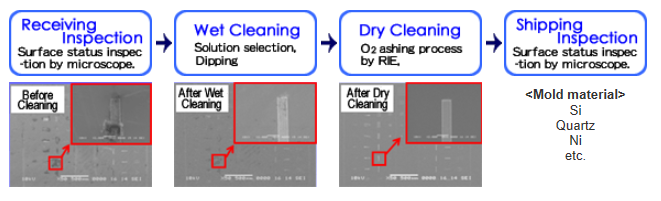

Mold Cleaning Service

We offer cleaning service of used mold for nanoimprint. By applying the most suitable method of cleaning (e.g. Thermal/UV, Type of Polymer etc.), it improves quality of your imprinting process.

Engineering Service

Under NIL research and development, optimization of mold, polymer, and imprinting parameters is required. Kyodo International offers nanoimprinting technology consulting by in-house mold manufacture/imprinting and technical cooperation with IMRE(Institute of Material Research and Engineering), Singapore.

Mold, Energy control on substrate surface
Reversal Imprinting
Combinatorial-mold Imprinting
Sequential Imprinting
Plasticizer Assisted Imprinting

Institute of Materials Researching and Engineering bannar

Example (1)
Cross linked Pillar structure by Polyethylene

Pattern Size : 200nm
(aspect ratio=1)
Substrate : Poly
(ethylene-naphthalene)
PEN

Example (2)
Double sided Grating structure in nano scale

Pattern Size : 200nm
Substrate : PMMA, Si

Example (3)
Double layer Grating structure

Substrate : Polystyrene, Si
